by Barry Rudolph
Originally Published Online At PSW
Go Back To The Gear Lust Directory
Because of its fundamental importance in popular music, the electric guitar is the subject of intense scrutiny and wide differences of opinions. Just what makes a good guitar sound?
Compared to all the subtle and not so subtle sounds that come out of an electric guitar amp, fidelity judgments of vocal sounds are easy to make! With good knowledge of the different guitar and amplifier sonic capabilities, coupled with good microphone techniques,we can achieve the ultimate guitar sound that "fits" the guitar part, song and production genre.
A good guitar sound starts with a good player with the right amp and guitar all working together. It is unrealistic to rely on an engineer to make poor gear sound wonderful in the control room. Microphone choices and miking techniques are good starting points for capturing and recording electric guitar amp sound.
Microphone choice (for me) is as big a part of the guitar amp's recorded sound as the amp and guitar used, volume played and player choice, because the mic type and placement will greatly influence the player's performance and tone.
The Shure SM57 cardioid dynamic is the most common microphone used to record electric guitar. This started back when all the more expensive microphones had already been used in big tracking sessions. Engineers were left with the "lowly" SM57 to handle those loud, cranky, noisy guitar amps.
|The Shure SM57!|
The new Granelli 5790 mic offers a right-angle version of the famed SM57. Great for stage work and studio, It can get into places around guitar amps where the XLR cable sticking out the back of mic normally precludes a stock SM57. They sound exactly the same as the original mic because they are hand made from the original!
It turns out that the SM57 is perfect for the task; its frequency response, originally tailored for speaking, matches the mid-range "voice" qualities of the guitar. It also has a compression effect on loud sounds--it squashes nicely, facilitating the engineer's job of maintaining consistent recording levels.
|The Sennheiser MD421|
The Sennheiser MD 421U cardioid dynamic is also popular, offering a wider frequency response (more high and low frequencies) than the SM57. A five-position rotary switch adjusts the frequency response from the flat position, called M (for music), all the way to the contoured S (for speech).
Generally, I find the 421 brighter with less of the compression effect than the SM57. These mics are also more directional, which is important for isolating the sound coming from one speaker in a multi-speaker cabinet.
|The Shure KSM44|
|The Neumann U87|
Condenser microphones also work great, but care must to taken to not get an overly bright sound. Your guitar player might complain that his amp sounds brighter than usual (compared to a SM57) and feel he must readjust his recording knob settings. As a result, I place them further away from the speakers.
(Photos Courtesy Of The Oliver Leiber Collection)

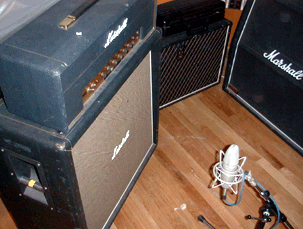

Figure 1 shows a Shure KSM44 condenser about 20 inches from a 1960s vintage straight Marshall 4X10 cab. (I was auditioning the three cabinets in the picture).
Condensers pick up more low frequencies from the amp, and this may or may not be a good thing. Pushing a lot of air might work in a heavy metal track, but it also might be inappropriate for a lighter pop song.
I've also noticed certain condensers sometimes add distortion when close-miking extremely loud amps. Occasionally, the metal wind screen can get loose and vibrates. Always use the attenuator pad and maybe the low frequency roll-off. The Neumann U 87 and U-47FET, Shure KSM44 and Audio-Technica AT4041 are all good choices.
Condenser microphones also provide the opportunity to experiment with different polar patterns such as omnidirectional and Figure-of-Eight (see my article about this here). Omnidirectional mics do not exhibit the proximity effect and will pick up more of the total sound of the amp and room tone, rather than one particular speaker.
I like omni mics for more of an ambient guitar sound or for room mics. Figure-of-Eight mics also pick up more of the room, but only from directly behind the mic's body opposite the front side.
Speaking of Figure-of-Eight, one of my favorites for guitar is the ribbon microphone. I have a pair of Royer R-121 Figure-of-Eight microphones that offer a whole new range of warm electric guitar sounds.
Big, cumbersome and old ribbon mics have been around for years, but using them on loud instruments carried the fear of knocking the fragile ribbon element off their suspension mounts. The smaller, lighter Royer mics can handle huge volumes without the worry.
One engineer remarked to me,"when you switch from the Royer back to the 57, you wonder where half the guitar sound went." Granted a big, fat and warm guitar sound on its own might sound ideal, but does it fit into your song production?
The Royer mic picks up sound from two opposing sides in what is also called a bi-directional pattern, and you can take advantage of this to get more of the recording space (room) in the sound. Sound entering the rear of the mic is 180 degrees out-of-phase with that coming into the front.
|Figure 2 (Sorry The Amp Is NOT For Sale)|
Various mic placements on guitar amps are closely guarded trade secrets amongst recording engineers, but here are some tried and true methods that I'll make good starting positions.
From The Front
Figure 2 shows an SM57 pointed at a very rare 1960s Gibson recording amp.
I aim the microphone exactly at the center of the speaker driver inside the amp. (For those who don't know this amp, the speaker is not mounted in the exact center of the cabinet, but I'm acting as though it is). To facilitate seeing through the grill cloth, use a flashlight.
This position produces the most high frequencies and moving the mic closer increase both level, low frequencies and reduces the cabinet's contribution to the overall sound. Some guitarists and engineers say there is nothing coming out of the exact center of a speaker that's worth recording. (I could easily make a funny retort here.) This is true for certain speakers, but test this position yourself to judge its usefulness.
If you want less highs and more warmth, move the mic sideways, parallel to the floor, toward the outside of the speaker.
Move in 1-inch increments, with someone in the control room you trust listening for sound changes. With a mic positioned inches from a speaker cone, small increments make a big difference.
At An Angle

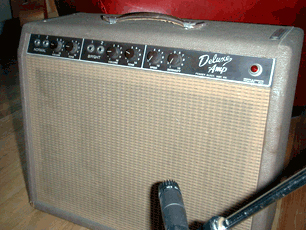

Figure 3 shows an SM57 at a slight angle on a Fender Brown-Face Deluxe. I find this a better position most of the time since you seem to get plenty of highs and more tonality than straight on.
It's a good idea to try from both sides and from the top or bottom. If the mic ends up on the floor pointed at the speaker, and sounds good, nail it down! The floor is going to trap bass frequencies and also add tone especially if it is made of wood and is built on a raised foundation.
Tilt The Amp
If the floor seems to "close down the sound,: try tilting the amp back. Fenders have chrome legs on the sides of the cabinets for that purpose, and it also projects the sound up at the musician. VOX amplifiers, like the AC30 and Super Beatles models, come with tilting carriage stands that completely isolated the amplifier from the floor. If possible, I like to set the amp on a folding chair.
Figure 4 shows an MD 421U on a vintage Fender Tweed Deluxe. Here, the amp is tilted back so that the bottom of the amp's cabinet couples less with the floor. All of these amps are open-backed, so a wall or open space directly behind them greatly affects bass response.
Front & Back

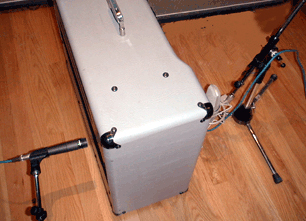

Figure 5 shows an open-backed amp, the Matchless DC30, with an SM57 on the rear and a KSM44 on the front. This set-up produces a very unusual tone and allows mixing the two mics for a mono track or using two tracks placed left and right in the mix. The phase of one of the mics should be flipped.
Try moving the mics very close to the speakers and processing the rear mic through a very short delay - less than 3 ms (milliseconds). Also, try NOT flipping phase.
This is a good way find out which speaker sounds the best in a 4X10 cab, and you can put each mic on a separate track and pan them left and right.
Be careful with phase, as some speaker manufacturers deliberately wire multi-speaker cabinets in and out of phase.
Some engineers will use a condenser on one speaker and a dynamic or ribbon on another, but I like to find the best speaker and use two mics on that speaker.
Even then, I sometimes hear a little “phasiness” between the microphones.
A very popular setup is an SM57 up close and then, four or five feet away, a U 87 or the tube U 67 for a cabinet mic.
In The Middle

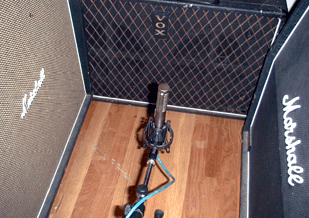

In Figure 6, I use a Royer R-121 equidistant between a 1960s 4X10 Marshall straight cabinet and a reissue 4X10 slant cabinet.
|Buy The Royer R121|
With both speaker cabinets pushing and pulling together and the warm sound of the ribbon in the middle, you're not going to get any fatter tone, especially for clean sounds. (The VOX cabinet was not in play here-- but who knows?)
Scientific Starting Point

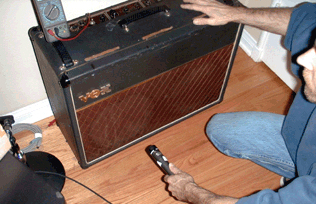

Figure 7 shows a scientific approach to mic placement on a Beatles AC30 VOX amp. The tech in the picture is using test instruments rather than his ears to find the "sweet spot".
Sound waves coming out of a guitar amp emanate in all directions, setting up patterns much like a stone produces when thrown into a very still and flat pond. Like in the water, sound waves interact producing multiple reflections and standing waves where sonic energy coalesces. The idea is to place the mic where sound waves add together.
Determining this position requires a way to measure output level of a microphone while it is moved around in front of the amp. First, set up for a guitar overdub with your microphone choice and fix the headphones so the musician can hear himself--unplug all headphones.
Then send a steady 700 Hz oscillator tone into the guitar amp's input jack and place a large VU meter so it can be seen from wherever the guitar speaker cabinet or combo amp is located.
If this is impossible to do, plug a voltmeter into the cue system and read the level there. Setting the meter to read mid-scale with the cue system level control and with ear protectors on, (let's make this science project as painless as possible), the mic should be moved around the front of the amp. In doing this, you'll find many peaks and dips in level. Also, I try to stand behind the speaker so that my body doesn't affect the measurement process.
Obviously, as the mic gets closer to the speaker the level goes up, but if you keep a fixed distance and then move the mic left, right, or up and down, you'll find a peak level. This is where you should set the mic.
These are some other ways to accomplish the task of recording guitar amps. Whether used alone or in combination with the aforementioned, all require much more experimentation and studio time.
Placing mics around the room is useful for effect, especially if you are recording in a great sounding space. This is an easy way to dress up a boring guitar sound, and there's a lot of room to experiment! (Pardon the pun...)
Try different distances and heights, microphone types, EQ, compression and delay. I sometimes tape pressure zone microphones to the control room glass, or leave the studio doors open, or put a mic down a hallway. If you have an elevator shaft or stairwell handy, use that - put the amp at the bottom and a mic at the top.
Recording The Electric, Acoustically

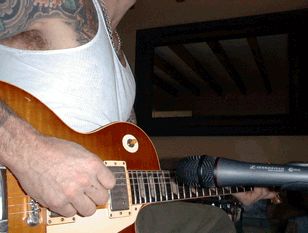

Figure 8 shows a Sennheiser e865 handheld condenser miking the "holy grail" of electric guitars: a 1959 Les Paul Sunburst. Obviously, the amp should be placed in another room for this to work. But I have recorded amps and mics on separate tracks and it makes a very unique combo. Great for arpeggios!
|The Sennheiser e865 Condenser|
Direct recording, also called "DI", from the British term "direct injection," is simply recording the output signal of the guitar itself. Electric bass guitar is almost always recorded this way because of its super present and clean sound. Guitarists like to play through some type of stomp box or pedal just to "vibe up" this very pristine sound. There is a whole category of guitar pedals, processors and effects, all meant to be recorded directly.
Whether you use a stomp box or not, here are a few caveats for getting the best sound from your guitar or bass. Remember that the typical output signal of an electric guitar is very low level and of a very high impedance. Low level means that it will need amplification, and the high impedance requires matching to your recording system.
Guitars are equipped with either passive or active pickup systems. Passive is where the strings vibrate in the magnetic fields of the pickup and generate an electrical signal that is processed by passive tone control circuitry and then fed to the output jack.
Everything is the same with active pickups except that the electrical signal from the pickups is electronically amplified within the tone circuitry and then passed out the output jack.
Be aware of which system is used in the guitar when recording direct. Vintage guitars, because of the older and weaker pole-piece magnets in the pick-ups, put out an even weaker signal, and this is why a lot of people replace those pickups with newer and hotter pick-ups.
Further, when attaching a direct box (or anything else such as a digital tuner), the output impedance is lowered (if the attached device is not of sufficiently high impedance) diminishing the guitar's signal further to say nothing of the tone, particularly the high frequencies. Only use a direct box with a very high input impedance to avoid an effect called "loading."
On the active side, there is less stress since the built-in amplifier inside the guitar (that always seems to need a new battery) jumps up the level and lowers the impedance. As a result, whatever it's connected to has less affect.
The guitar's super-output level, if not treated correctly, may become a mixed blessing because it affects your amp's tone and settings and the direct recording sound.
When direct recording guitars with active pickups, I use a simple, good quality matching transformer, (such as a Jensen), that converts to the standard microphone pre-amp input impedance of about 150 ohms.
I hardly ever use an active direct box for active guitars - too much activity! For passive guitar pickups, I like to use active direct boxes, such as models from Countryman Associates, or the Demeter Tube models. These are all electronic isolation amplifiers with extremely high input impedances that will not load your guitar's output signal and change the tone.
Speaker Jack Direct
Another way to record direct is by way of the speaker jack. A cable from the external speaker jack is connected to a matching transformer and that signal is recorded. The difference is that the sound of the amp, (with all its personality), and the guitar are recorded.
There are several models of power soaks or power resistor loads available that take the place of the speaker and provide an isolated recording line output. You can also put a mic on the speaker and mix in the direct signal. You'll have to check phase again and probably use an equalizer.
Musicians In The Control Room (Or Not!)
For an electric guitarist, there's no better way to achieve a great sound than by sitting or standing next to the amp. There is an important interaction between the guitar's body and the vibrations set up by the amplifier.
Increased and unique sustain qualities, feedback effects and tone enhancement due to acoustic reinforcement only happen if the player is located next to the amp. When I listen to some of the newer rock records, I miss that sound.
In the recording studio, it may not be practical for the guitar player to be near his/her amp since the wide volume differences of all the sound sources in the same room (drums, bass, other guitars and singers) preclude the use of higher guitar amp levels during live band tracking sessions.
So the guitar amp or speaker cabinet is placed in an isolation booth for maximum control and separation. The guitarist can sit out in the studio with the drummer and the rest of the band, or even in the control room with the producer and engineer, but must rely on a good monitor mix to play along.
In this scenario, the guitarist loses all sonic interaction between his guitar and amplifier retaining only the basic tonal qualities of his amp.
Typically when a player is remote from the amplifier, the amp top is set next to the guitarist, and heavy-gauge cables connect it to the speaker cabinet.
In the case of one-piece combo amps, running super-long guitar cords from the guitar to the amp is unacceptable, since the distributed capacitance along the long cable acts as a high frequency roll-off filter on the guitar's delicate output signal. I recommend using a small buffer amplifier for this job that "conditions" or buffers the guitar's signal for long cable runs.

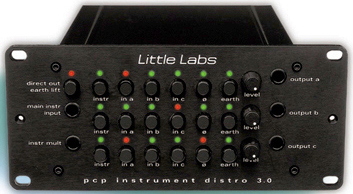

The Little Labs PCP Instrument Distro, shown in Figure 9, is a distribution amplifier and switching matrix for sending electric guitar signals to multiple amps and/or at the same time, to +4dBv professional outboard signal processing gear. The Distro also provides a clean, direct signal for recording directly to your recorder.

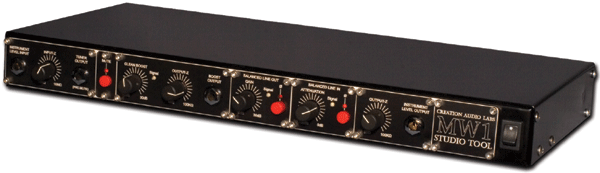

There is also Michael Wagner's MW1 Studio Tool from Creative Audio Labs. It is the latest in bidirectional guitar/amp/professional studio audio level matcher/router. It's pictured in Figure 10 below.
